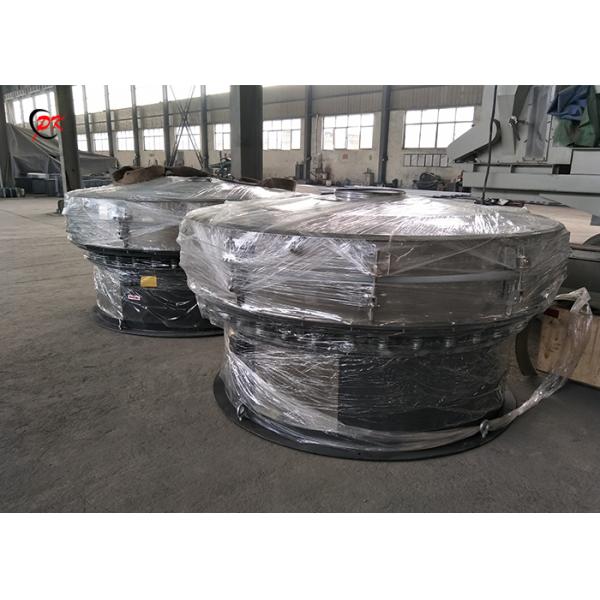

XZS1500 SUS304 Industrial Flour Rotary Vibrating Sieve Shaker
Introduction
Flour rotary vibrating shaker is a sort of high precision powder screening machine, the advantages are:low noise, high efficiency, fast network required for 3-5 minutes, fully enclosed structure, it is suitable for sieving and filtering grain, powder and mucus material. The vibration source of rotary vibration sieve is vertical motor, the motor is installed with upper and lower eccentric weight at both ends,changing the motor rotary motion into horizontal, vertical, and inclined motions,hence the movement is transferred to the screen surface.What’s more,the material trajectory on the sieve surface can be adjusted by changing the phase angle of motor upper and lower heavy weights.
Working Principle
The vibration is accomplished by eccentric weights on the upper and lower ends of the motion-generator shaft. The direction of the eccentric weights can change its rotational mode,rotation of the upper weight creates vibration in the horizontal plane, which causes material to move across the screen cloth to the periphery,while the lower weight acts to tilt the machine, causing vibration in the vertical and tangential planes. The trajectories of materials on the screen can be changed by adjusting the phase angle of upper and lower weights.
Application
Rotary Vibrating Screen is widely used in many industries, covering food, chemical, ceramic, metallurgy, pollution treatment and so on, dealing with various kinds of materials.
Advantages and Features
1. Various material separation range- power or particle,wet or dry, heavy or light,coarse or fine, hot or cold.
2. Various size range-available diameter from 400mm to 2000mm,mesh size can reach 500 mesh ( 0.028 mm).
3. Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.
4. Quick Screen Changes-Quick release device is provided to replace the screen with 5 minutes.
5. Automatic screen cleaning-bouncing balls keep screen openings clean and maintain a good efficiency.
6. Customized order- Rotary vibrating screen can be customized according to customer's demand.
7. Unique design-Mature technology,compact and simple structure,convenient installation and maintenance.
8. Wide application-Rotary vibrating screen is applicable to any powder, granule, particle and mucus.
Technical Parameters
| Model | Nominal Diameter(mm) | Screen Diameter(mm) | Screen Surface Area(m3) | Feeding size (mm) | Specification | NO. of Layers | Frequency(rpm) | Power(Kw) |
| XZ-400 | 400 | 340 | 0.09 | <10 | 2-325 | 1-5 | 1500 | 0.18 |
| XZ-600 | 600 | 530 | 0.22 | <10 | 0.25 |
| XZ-800 | 800 | 720 | 0.4 | <20 | 0.55 |
| XZ-1000 | 1000 | 900 | 0.63 | <20 | 0.75 |
| XZ-1200 | 1200 | 1100 | 0.95 | <20 | 1.1 |
| XZ-1500 | 1500 | 1400 | 1.5 | <20 | 1.5 |
| XZ-1800 | 1800 | 1710 | 2.3 | <30 | 2.2 |
| XZ-2000 | 2000 | 1910 | 2.86 | <30 | 3.7 |
Note: the parameter above is just for reference,it can be customized by different requirment.
Selection Conditions
| ♦ Material to be processed: | ♦ Screen layer/deck/sieve number: |
| ♦ Bulk density: t/m3 | ♦ Mesh size of every screen layer/deck/sieve: mm |
| ♦ Material Temperature: ºC | ♦ Upstream equipment (what kind of equipment is used to feed the material): |
| ♦ Water Content: % | ♦ Downstream equipment (what kind of equipment is used to discharge the material): |
| ♦ Material is corrosive or not: (Yes or No) | ♦ Construction material: (Carbon steel, SS304, SS316L or any special requirements) |
| ♦ Material is sticky or not: (Yes or No) | ♦ Working environment: (indoor or outdoor) |
| ♦ Granule size of material: mm | ♦ Working environment temperature: °C |
| ♦ Max. granule size: mm | ♦ Working power supply: 3 Phase V Hz |
| ♦ Particle distribution percentage: | ♦ Quantity: sets |
| ♦ Handling capacity: t/h | |
